Technical Specs You Must Verify on Track Adjusters & Recoil Springs

When downtime costs $480 per hour, “good enough” is a luxury you cannot afford. As an undercarriage manufacturer, we believe quality isn’t a claim – it’s a set of measurable, verifiable parameters.

Below are the critical technical data points you must demand for track adjuster assemblies and idler recoil springs on excavators and bulldozers.

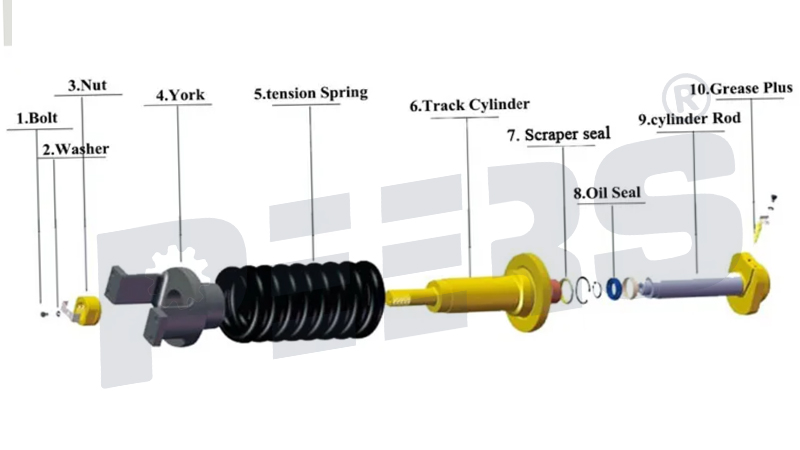

1. Track Adjuster Assembly – Key Quality Metrics

| Parameter | Industry Minimum | Our Standard | Why It Matters |

| Rod hardness (HRC) | 45–50 HRC | 52–56 HRC (induction hardened) | Prevents scoring from dirt ingress |

| Chrome thickness | 0.03 mm | 0.05–0.10mm | Corrosion resistance in wet/muddy conditions |

| Surface roughness (Ra)| 0.4 µm | ≤0.2 µm(mirror finish) | Extends seal life more than 3 times |

| Cylinder tube straightness| 0.5 mm/m |≤0.2 mm/m | Prevents uneven seal wear & internal bypass |

| Proof pressure | 150% of working | 200% for 30 sec (no drop) | Guarantees no weld or casting porosity |

| Seals | NBR (nitrile) | HNBR + polyurethane wiper | -40°C to +150°C, ozone & abrasive resistant |

Additional bullet-point technical data for adjuster assembly:

- Grease fitting thread: 1/8" NPT or M10x1 (OEM-interchangeable). We use hardened steel with check valve – no plastic fittings.

- Yoke pin bore tolerance: H7 fit (+0.015 / 0 mm) to prevent play and premature pin wear.

- Weld integrity: 100% visual + magnetic particle inspection (MPI) on end cap and yoke welds. No porosity, undercut, or cold lap.

- Stroke length tolerance: ±1.0 mm vs. OEM spec (critical for correct track sag range).

- Anti-corrosion coating: Zinc-nickel plating (minimum 8 µm) with trivalent passivation – salt spray test ≥ 500 hours.

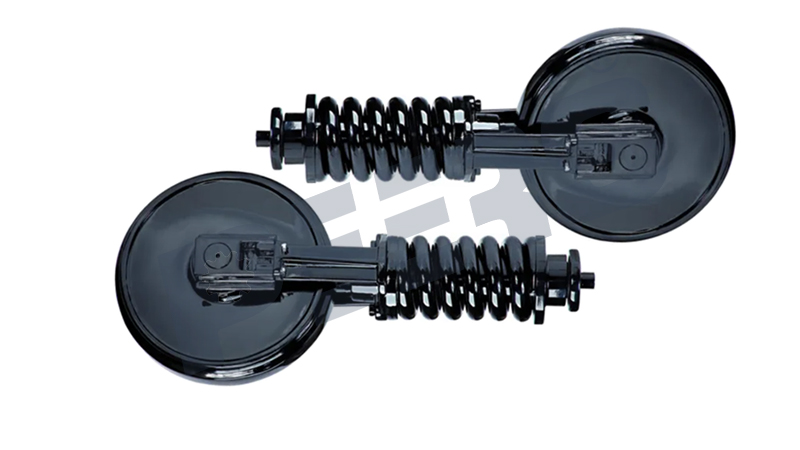

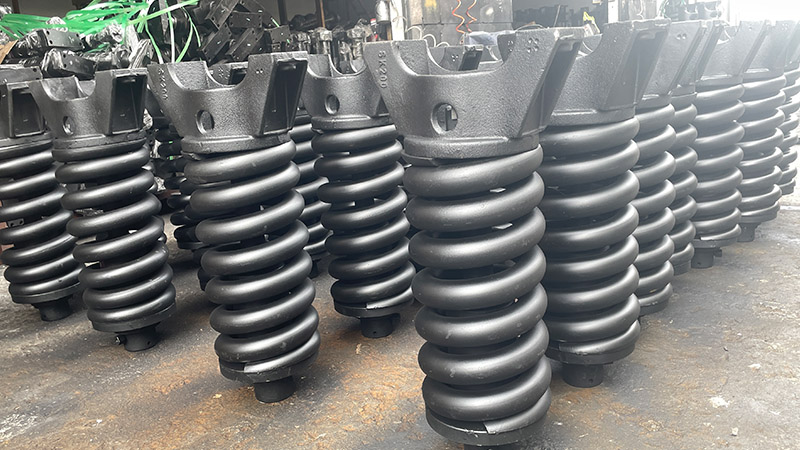

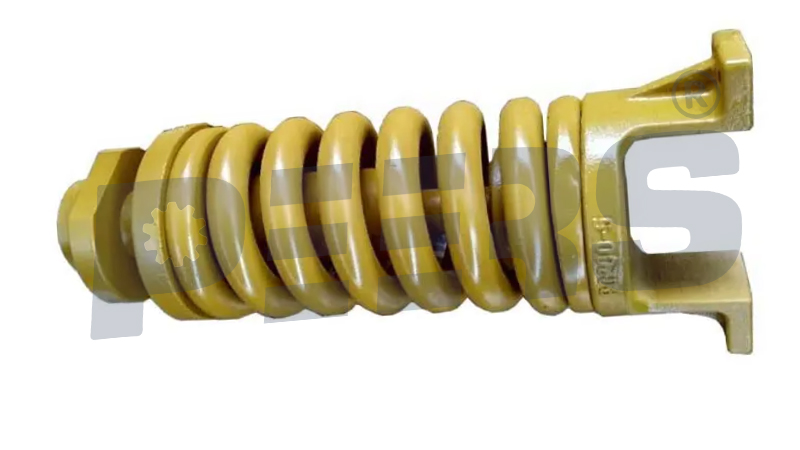

2. Recoil Spring (for Idler Wheel) – Key Quality Metrics

| Parameter | Industry Minimum | Our Standard | Why It Matters |

| Material grade | 55CrSi or equivalent | 60Si2MnA (silicon-manganese)| Higher fatigue resistance & elasticity |

| Surface treatment| As-ground or light shot peen | Intensive shot peening (Almen intensity 0.018–0.022A) | Compressive stress prevents micro-cracks |

| Solid height tolerance | ±2% of free length | ±1% | Ensures consistent preload & recoil force |

| End squareness| 5° max deviation | ≤2°| Prevents side loading on adjuster rod & idler shaft |

| Fatigue life | 500,000 cycles | 1.2 million cycles (tested) | Matches or exceeds OEM service life |

| Corrosion protection | Light oil | Phosphate + heavy oil or epoxy coating | Survives storage & wet environments |

Additional bullet-point technical data for recoil spring:

- Wire diameter tolerance: ±0.15 mm for springs up to 30 mm wire; ±0.20 mm for larger diameters (D8–D11 dozer springs).

- Heat treatment: Through-hardened (not case-hardened). Tempered at 400–450°C for spring toughness.

- Load verification: Tested at three compressed heights (preload, working, and solid) – load tolerance ≤ ±5%.

- No surface defects: 100% eddy current or MPI inspection – rejection for any seam, crack, or decarburization layer deeper than 0.1 mm.

- End coil design:Closed, ground, and tapered to match OEM idler pocket geometry.

he Short Quality Checklist (Print This)

✔ for a Mill Test Report (MTR)– No MTR = no traceability.

✔ Require proof test results – Photos or data logs from hydrostatic testing.

✔ Inspect the rod surface – If you see circular grinding marks, reject it.

✔ Check the spring color – A uniform matte gray (shot-peened) is good. Shiny black or blue (oiled only) is not enough.

✔ Demand a warranty– Minimum 12 months / 2,000 hours. We offer 24 months on spring breakage.
