The undercarriage is the foundation of every excavator and bulldozer, playing a crucial role in supporting the machine’s weight, providing traction, and ensuring smooth, stable movement on various terrains. Whether working in muddy fields, rocky areas, or construction sites, the quality and condition of the undercarriage directly affect performance, efficiency, and service life. The main components of the undercarriage include the “track roller (down roller), carrier roller (upper roller), sprocket (segment), track chain (track link), front idler roller, and track shoe (track pads)”. Each part works together to create a strong and reliable system that enables heavy machinery to perform demanding tasks with stability and precision.

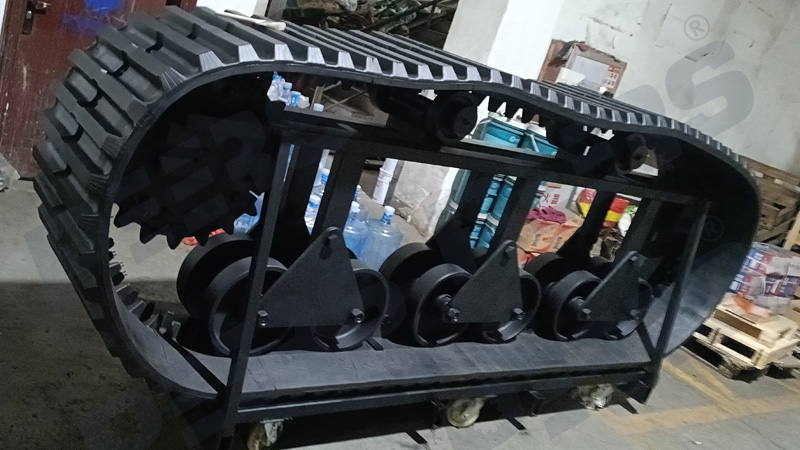

The track roller supports the entire weight of the excavator or bulldozer while the machine moves. It keeps the track chain in close contact with the ground, ensuring smooth and steady travel even on uneven surfaces. Above the track frame, the carrier roller (upper roller) helps guide excavator and dozer track chains and prevents it from sagging, ensuring proper tension and reducing wear. Together, these rollers maintain track alignment and minimize vibration during operation.

The sprocket (segment) is another essential component, responsible for driving the track chain. It transfers the engine’s power to the tracks, converting rotation into movement. High-quality, wear-resistant sprockets are necessary for efficient power transmission and long service life. The “front idler roller” guides the track smoothly around the undercarriage and helps control track tension. Proper adjustment of the idler roller ensures that the track runs straight and reduces the risk of derailment or uneven wear.

The track shoes provides traction and stability, allowing the machine to operate effectively on different ground conditions such as mud, sand, gravel, or rock. The design and width of the track shoe can vary depending on the job requirement—wider pads are suitable for soft ground, while narrower ones perform better on hard or rocky surfaces. All these parts are connected through the track chain assy, which serves as the backbone of the undercarriage, transmitting power and ensuring the track moves smoothly.

For excavators, the undercarriage allows the upper structure to rotate 360 degrees while maintaining balance and stability. It supports heavy lifting, digging, and loading operations without losing traction. In bulldozers, the undercarriage provides the pushing power and ground grip required for grading, leveling, and earthmoving tasks. Both machines rely heavily on a strong and durable undercarriage to perform efficiently under high stress and harsh environments.

Regular maintenance of undercarriage components is essential to extend their service life. This includes cleaning out mud and debris, checking track tension, lubricating moving parts, and replacing worn-out bottom rollers, top rollers, or sprockets when necessary. A well-maintained undercarriage not only improves performance but also reduces operating costs and downtime.

In conclusion, the undercarriage is the heart of excavators and bulldozers. Every part—from the down roller to the track pads—works in perfect coordination to ensure the machine operates safely, efficiently, and reliably. Choosing high-quality undercarriage parts and performing regular maintenance is the key to achieving maximum durability and productivity in any construction or earthmoving operation.
